WT-70A  手機外殼燙金機

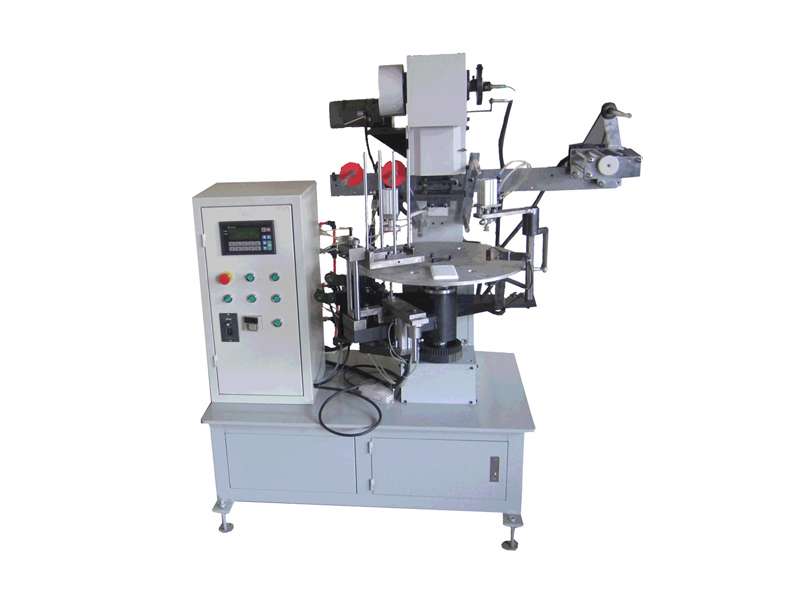

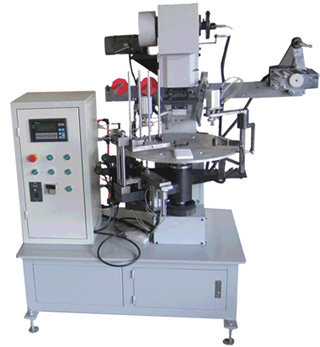

WT-70A   Cell Phone Case Hot Stamping Machine

燙金壓力           Gilding pressure

500Kg

燙金面積           Gilding area(mm)

30×30mm

電壓               Voltage

380V   50Hz

功率               Power

1.5Kw

主電機功率         Motor Power

1.2Kw

燙金溫度           Gilding Temperature

0～300℃

燙金精度           Stamping Accuracy

±0.05mm

加熱功率           Heating power

0.3kw

加熱板行程         Heating plate range

50mm

工作臺可調行程     Worktable Adjustable Moving Range

75mm

工作效率           Efficiency

30-40pcs/min

外形尺寸           Packing size  (m)

1.4×1.55×0.75m

設備重量           Weight(Net/Gross)

400Kg

氣源壓力           Air Pressure

0-0.8Mpa

帶自動尋位功能     Has Automatic Adjust Position System
